ABB 2CDG110061R0011

IPR/S2.1

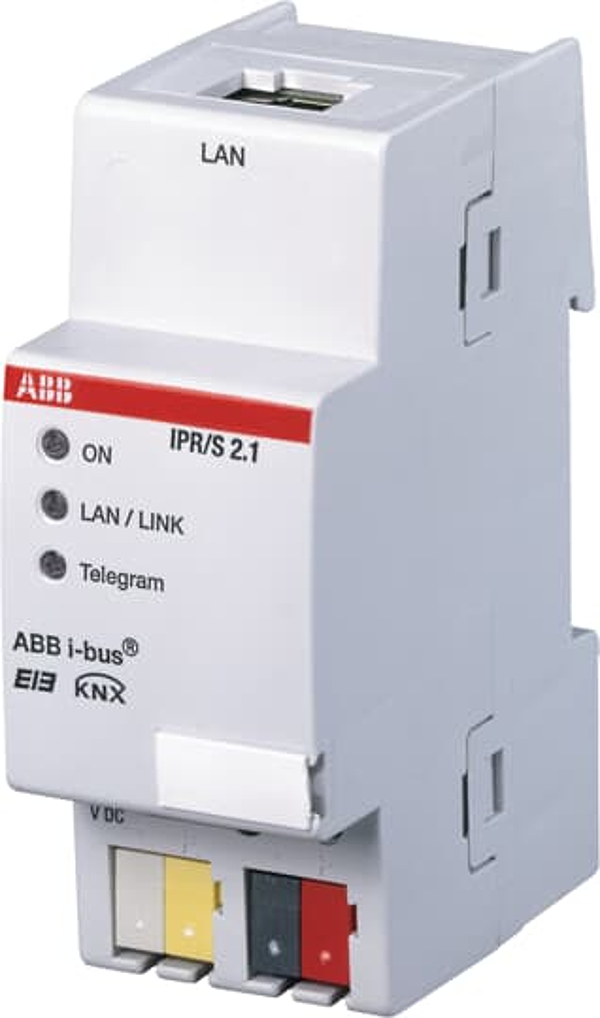

IPR/S2.1 IP Router, MDRC

Opis

The IP Router is the interface between EIB/KNX networks and IP networks and routes telegrams as a line or area coupler using the LAN for the rapid exchange of telegrams between the lines/areas. Together with the ETS 3.0f (or higher), the IPR/S can program EIB/KNX devices via the LAN. The device uses the KNXnet/IP protocol (Tunneling and Routing) defined by the KNX Association. Its IP Address can be fix, assigned via DHCP or AutoIP. For operation an additional 10…30V DC supply is necessary.
